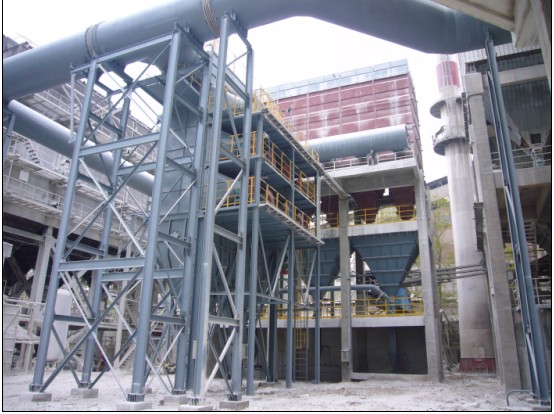

High-temperature Flue Dedusting System of Active Kiln in Refractory Material Company of Wuhan Iron and Steel (Group) Corporation
施工时间：2007.06.01

武钢耐火材料公司活性石灰窑车间1#活性石灰回转窑，产能为600t/d，燃料采用焦炉煤气，回转窑系统设备主要由竖式预热器、回转窑等组成。
    高温烟气（350℃）从竖式预热器出口经管路与控制阀门再通过机力冷却器进行降温，降温后出口处排出的烟气温度降温至180℃，并经过烟道进入长袋低压脉冲布袋除尘器，进入除尘器滤袋室的烟气中粉尘逐步被吸附在滤袋上，当除尘器达到一定的阻力时，清灰装置开始依次分室进行清灰工作。经过脉冲喷吹装置清灰后，吸附在滤袋上粉尘抖落入除尘器的灰斗中，清灰完成后，除尘器的阻力达到正常值。经过滤袋清灰后粉尘排入灰斗中，由星形卸灰阀排出，灰贮存于中间灰斗中，最终由罐车运走。
机力冷却器的技术参数
 冷却面积约：1200㎡ 处理烟气量：82000Nm3/h
 进口温度:≤350℃ 出口温度:≤180℃
 冷却器阻损：1000Pa
    除尘器的技术参数
 处理烟气量：～82000Nm3/h 处理烟气温度：≤180℃(瞬间220℃)
 除尘器工况流量:～155000m3/h 烟气入口含尘浓度：20g/Nm3
 烟气出口含尘浓度：≤30mg/m3 设备耐压：-12000Pa
 过滤面积：2998㎡  过滤风速：0.86m/min
 滤袋规格: Ф130×6000  滤袋数量: 1224条
 阻力：＜1800Pa   滤袋材质：诺美克斯履膜针剌毡
 袋笼材质：Ф4mm冷拨钢丝表面镀锌处理
 压缩空气耗量：～4m3/min  配套储气罐：1.0 m3

1# active rotary limekiln of active limekiln workshop in Refractory Material Company of Wuhan Iron and Steel (Group) Corporation has the production capacity of 600t/d with fuel of coke oven gas. Rotary kiln system equipments consist of vertical preheaters, rotary kilns, etc.
High temperature flue gas (350 ℃) from vertical preheater outlet passes pipeline for cooling with control valve by mechanical cooler; flue gas discharged from outlet with the temperature down to 180 ℃ after cooling enters long-bag low pressure pulse bag filter through the flue and the dust of flue gas in the filter bag chamber is gradually adsorbed on the filter bag and when the bag filter reaches a certain resistance, the dust removal device starts to work in turn by compartments. After dust removal by pulse jetting device, the dust absorbed on the filter bag is shaken off and falls into the hopper of bag filter; after dust removal is completed, the resistance of bag filter turns to normal. After dust removal by the filter bag, the dust is discharged into the hopper by star cinder valve and the ash stored in intermediate hopper will finally taken away by tankers.
Technical parameters of mechanical cooler
 Approximate cooling area: 1200 m2  Treatment flue gas volume: 82000Nm3/h
    Inlet temperature: ≤350℃ Outlet temperature: ≤180℃
    Resistance loss of cooler: 1000Pa
    Technical parameters of bag filter
 Treatment flue gas volume: ～82000Nm3/h
Treatment flue gas temperature: ≤180℃ (instant 220℃)
Operation flow of bag filter: ～155000m3/h
Dust concentration of flue gas inlet: 20g/Nm3
Dust concentration of flue gas outlet: ≤30mg/ m3
Durable pressure of equipment: -12000Pa
Filtration area: 2998㎡ Filtration velocity: 0.86m/min
Filter bag spec.: Ф130×6000   Filter bag qty.: 1224
Resistance: ＜1800Pa  Material of filter bag: Nomex coated needle felt
Material of bag cage: Ф4mm cold-drawn steel wire with galvanization for surface
Compressed air consumption: 4m3/min   Auxiliary air receiver: 1.0 m3
